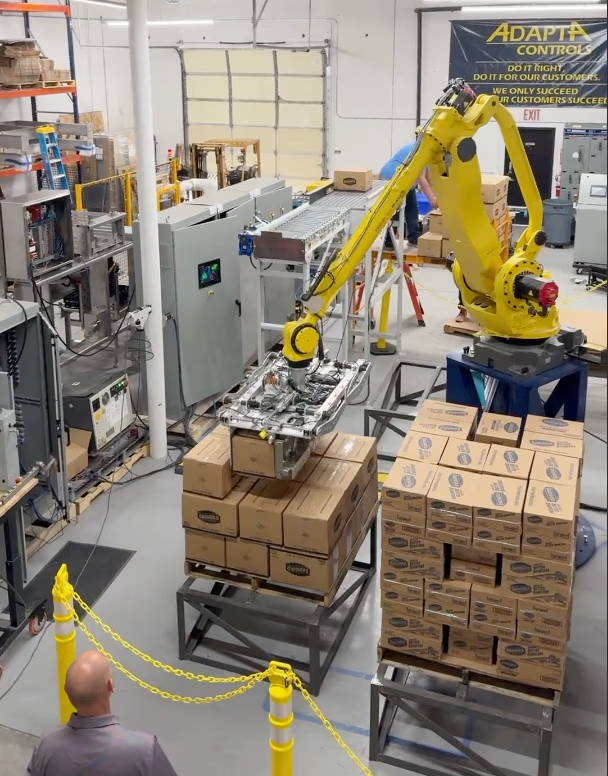

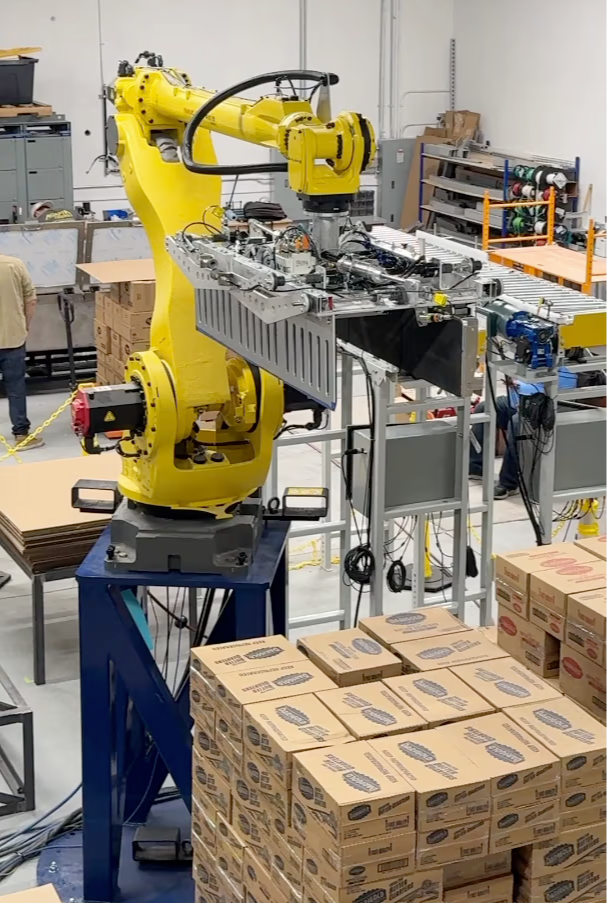

A robotic palletizing system uses a programmable robot arm and gripper to pick products from an infeed and place them onto pallets in a programmed pattern. A typical cell also includes conveyors, sensors, safety hardware, and operator controls, and it stacks products layer by layer until the pallet is full.

Robotic palletizers are often more flexible than conventional palletizers because operators can change recipes or pallet patterns in software instead of relying on mechanical changeovers. HOJ uses FANUC palletizing robot models with payloads up to 700 kg in FANUC America's current lineup, with some applications running up to 30 cases per minute.

A robotic palletizer can range from about $100,000 for lighter-duty cobot cells to $175,000+ for pre-engineered robotic systems, while custom integrated systems often start around $300,000 and can go much higher depending on throughput, payload, safety, and integration scope.

The total price usually includes more than the robot arm alone, such as grippers, conveyors, pallet handling, guarding, controls, and programming, so full system cost depends on how much end-of-line automation you need.

HOJ can help scope turnkey pricing around the complete palletizing solution instead of just one equipment component.

A robotic palletizer often reaches payback in about 1 to 3 years, with some cobot systems landing closer to 12 to 24 months depending on labor savings, throughput, and how many shifts the line runs.

The ROI usually comes from reducing manual palletizing labor while also improving consistency, lowering overtime pressure, and cutting some injury-related and inefficiency costs at the end of the line.

Robotic palletizers can handle a wide range of products, including cases, bags, pails, bottles, and other containers, and some systems can also support mixed palletizing for varied loads.

What the system can handle depends heavily on the end-of-arm tooling, since different grippers are designed for different product shapes, weights, and packaging styles.

FANUC palletizing applications commonly use the M-410 Series, which is purpose-built for palletizing and handling and offers payloads up to 700 kg in FANUC America's current lineup.

Depending on the application, HOJ may also use R-1000, R-2000, M-710, or a CRX collaborative robot when payload, reach, footprint, or cell layout call for a different fit.

A conventional palletizer uses mechanical equipment to form and place layers, which makes it a strong fit for high-speed, high-volume lines with uniform products.

A robotic palletizer uses an articulated robot arm, is generally more flexible, more space-efficient, and easier to reprogram, and is often the better fit when you run multiple SKUs or need more adaptable automated palletizing.

Choose an industrial robotic palletizer when you need higher throughput, heavier payloads, or a more traditional fenced automation cell.

Choose a cobot palletizer when loads are lighter and you want easier programming, faster deployment, and a smaller-footprint setup, though guarding still depends on the application's risk assessment.

Yes. A robotic palletizer can also be used for depalletizing, especially when paired with vision so the robot can detect changing box positions and orientations on incoming pallets.

That is useful in receiving, repalletizing, and mixed-load handling where the robot needs to adapt instead of relying on fixed picks.

Start by looking at throughput, payload, product variety, floor space, and integration requirements.

High-volume uniform lines may favor conventional setups, while mixed-SKU or changeover-heavy operations usually benefit from flexible automated palletizing systems.

HOJ typically begins with a line assessment to match the right FANUC model and cell configuration to your operation before building out a full scope and quote.

The robot arm is only part of a successful robotic palletizing solution; tooling, conveyors, guarding, controls, and programming make up the rest.

HOJ handles the full scope as a FANUC authorized integrator, from layout and robot selection through Factory Acceptance Testing and go-live support, so one team owns the project from start to finish.
