An automated guided vehicle (AGV) is a driverless material-handling vehicle that moves pallets, carts, or raw materials through a facility along a predefined path using agv navigation technologies like magnetic tape, laser reflectors, or LiDAR-based mapping.

The most common types are unit load AGVs (for pallets and containers), tugger/tow vehicles (for pulling carts to production lines), forklift AGVs (for lifting and stacking at height), and an automated guided cart or AGC (the simplest, lowest-cost option for light loads on assembly lines).

AGVs are typically managed by fleet control software that coordinates routing and task assignment, often integrated with a facility's warehouse management system (WMS) or ERP to streamline automated material handling.

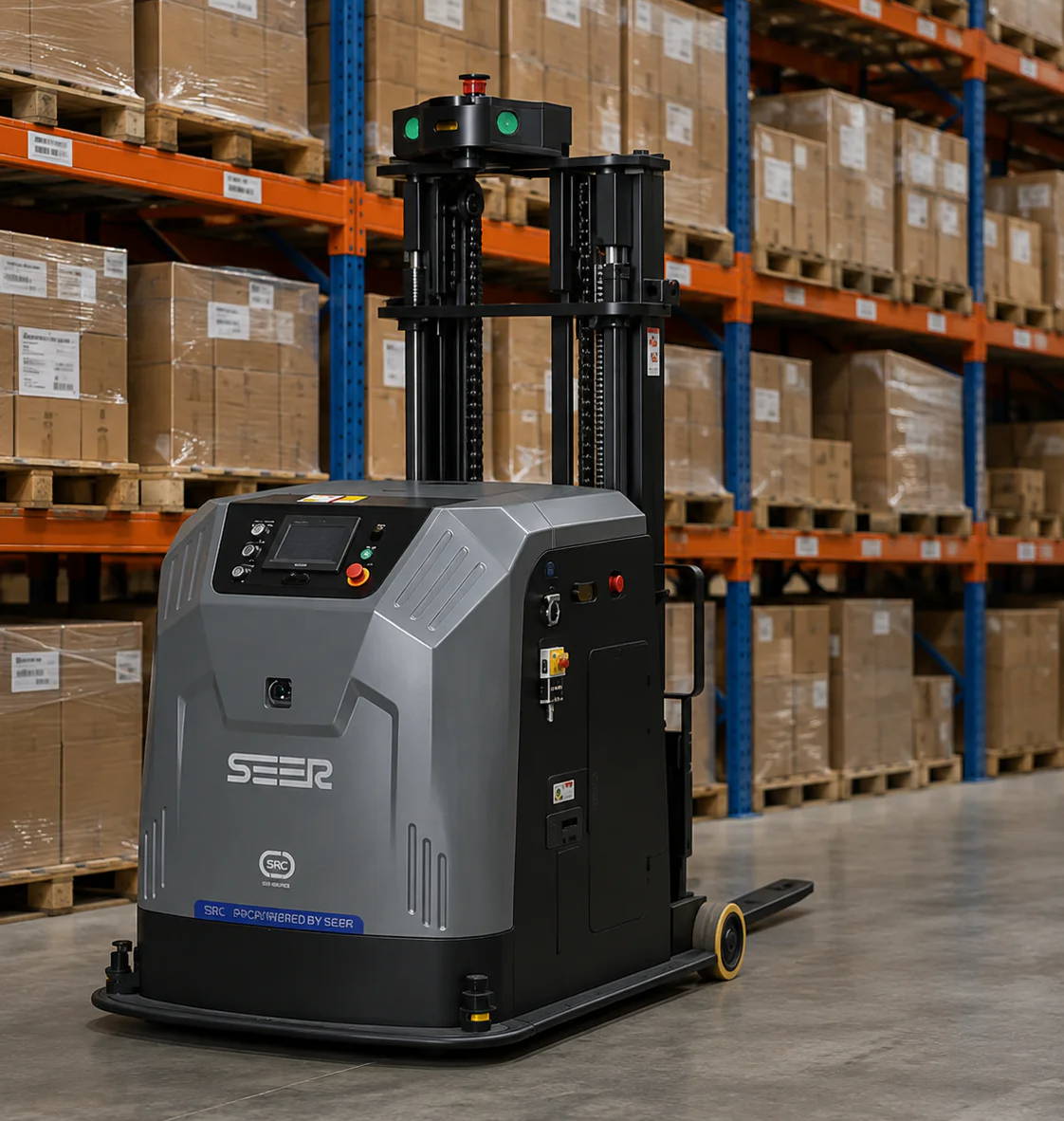

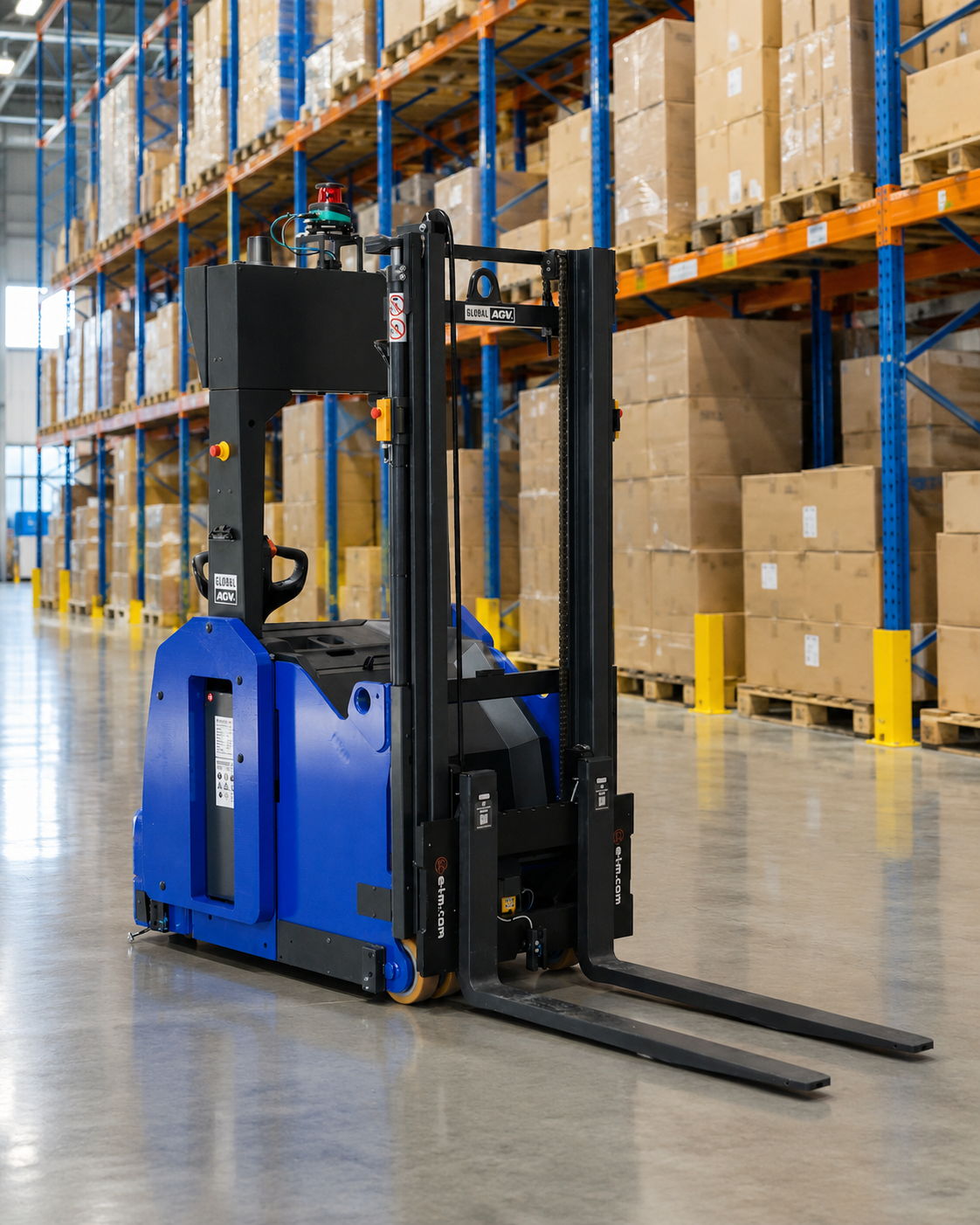

AGVs range from a basic automated guided cart (AGC) starting around $15,000–$25,000 for light, tape-guided transport, to an agv forklift at $75,000–$200,000+ that handles lifting, stacking, and racking operations without an operator.

In between, a towing agv pulls multiple carts per trip for high-throughput line-side delivery in manufacturing, and unit load AGVs carry individual pallets or containers between fixed points. For highly specialized operations, custom agvs can be engineered to handle unique dimensions or extreme weights.

The right type depends on the load profile, route distance, handoff requirements, and how the vehicle needs to interact with people and equipment already in the facility.

This price range is intended to provide a ballpark estimate, not a set-in-stone quote. It does not account for market availability, price fluctuations, or other external factors that may affect the final cost.

Payback is calculated by dividing total system cost by the annual labor cost replaced. Implementing a complete automated guided vehicle system in a multi-shift operation typically yields a full ROI within 18 to 36 months.

Beyond direct reductions in manual labor, ROI drivers include reduced product damage, fewer safety incidents, and the ability to redeploy workers away from repetitive transport tasks to higher-value operations.

AGVs follow fixed paths using magnetic tape, laser reflectors, or wires. They stop when an obstacle blocks the route.

In contrast, an autonomous mobile robot (AMR) uses onboard sensors to navigate dynamically and reroute around obstacles without floor infrastructure, making them better suited for dynamic environments.

An AGV robot generally costs less per unit: guided carts start around $15,000 to $40,000 compared to AMRs which can be double or triple that price.

AGVs are typically the better choice for simple, stable, and repeatable routes in structured facilities.

Individual AGV pricing ranges from about $15,000 for a basic guided cart to over $200,000 for a high-capacity forklift AGV. Tuggers are typically $50,000 to $85,000 and unit load vehicles are $40,000 to $70,000.

These prices are driven by vehicle type, payload capacity, and navigation system. A complete system also includes fleet management software, site mapping, and integration with your existing warehouse software.

Yes. Advanced AGVs include multiple safety layers: LiDAR scanners that slow or stop the vehicle before contact, physical bumper sensors, and emergency stops.

OSHA data shows roughly 110,000 forklift injuries per year in the U.S. with about 80% involving pedestrians. AGVs eliminate the operator error and erratic human intervention that drives most of those incidents.

The main options are magnetic tape or wire guidance (lowest cost and most proven, but routes are physically fixed), laser navigation (high accuracy to ±10mm with routes adjustable in software, but requires reflector installation), natural-feature navigation using SLAM/LiDAR (most flexible with no floor or wall modifications), and inertial navigation (which uses floor transponders and gyroscopes to track position).

Some facilities deploy hybrid AGVs that use one method (like SLAM) for open-floor travel and another (like laser reflectors) for precision docking at specific handoff points. The right choice depends on how often routes change, facility layout, floor conditions, and budget.

AGVs are widely used in warehousing and distribution (pallet transport between receiving, storage, and shipping), manufacturing (work-in-process transfers and line-side replenishment), automotive (just-in-time parts delivery), food and beverage (temperature-controlled pallet handling), paper/metals/heavy industry (oversized loads), and pharmaceutical/healthcare (clean-room material flow).

The common thread across all of these is repetitive, structured material transport moving along similar paths across multiple shifts. If that movement creates labor strain, congestion, or safety exposure in your facility, AGVs are worth evaluating.

Start with the workflow, not the agv technology. Strong indicators include repetitive forklift-based transport between fixed points, two or more shifts per day, consistent routes that don't change often, and difficulty staffing material handling operators.

HOJ begins by evaluating the facility and real operating conditions, then identifies the best automation opportunity and shapes the AGV approach around it. Reach out to start that conversation.

It depends on the navigation method. Magnetic tape AGVs need tape on the floor (quick, low disruption), natural-feature navigation (SLAM/LiDAR) often needs no modifications at all, and laser-guided systems require reflector targets on walls or racking.

Some facilities may also need aisle-width adjustments, since ANSI/ITSDF B56.5 specifies a minimum of about 20 inches of clearance on both sides of the travel path. HOJ evaluates facility readiness as part of implementation planning so you know exactly what's needed before any commitment.
