In modern industrial and construction environments, the efficient and safe movement of heavy materials is paramount. An Overhead Crane is critical infrastructure, providing indispensable solutions for lifting, transporting, and positioning massive loads across diverse sectors.
These sophisticated systems are far more than mere lifting tools; they are strategic assets that significantly enhance productivity, optimize space, and bolster facility safety protocols.
A Legacy of Innovation: The History and Evolution of Overhead Cranes
What's an Overhead Crane?
Why Businesses Choose Overhead Cranes: Maximizing ROI Beyond the Lift
Types of Overhead Cranes
Hook Coverage Area - Pickup Area
Overhead Crane Services (Utah and Idaho)
Crane Hoists
General Codes & Regulations
Ensuring Long-Term Success with Overhead Cranes
The journey of overhead cranes is a testament to humanity's continuous pursuit of greater efficiency and capability in material handling. From rudimentary ancient devices to today's advanced, intelligent systems, crane technology has undergone remarkable transformations while still retaining core principles.
Early lifting mechanisms emerged in ancient Greece, wherebasic pulley systems hoisted stones for monumental structures. This laid the groundwork for future advancements. Roman engineers refined these designs, introducing treadwheel cranes crucial for their grand architectural feats. A notable example is the "Polyspastos," described byVitruvius, which reportedly allowed just five men to lift loads that would have otherwise required 150 manually.
In the Middle Ages, master builders developed advanced lifting machines for Gothic cathedrals and castles alongside specializedharbor cranes and early counterweight systems. The Renaissance brought a greater mechanistic understanding to crane design, leading to advanced gear and slewing mechanisms, with visionary ideas even documented by Leonardo da Vinci.
The actual turning point arrived with the Industrial Revolution. Steam-powered cranes dramatically enhanced lifting capacity and efficiency, becoming indispensable in heavy industries like shipbuilding and mining. German company Ludwig Stuckenholz began mass production ofsteam cranes in the 1840s.
The advent of electricity brought another paradigm shift. In 1876, Sampson Moore in England supplied the Royal Arsenal with the first electric overhead crane. By 1887, Ludwig Stuckenholz integrated electrical components, culminating in Germany's first mass-producedelectric motor hoistin 1910, democratizing powered lifting.
Modern crane technology has since dramatically evolved, shifting from steam to hydraulic and electric systems in the late 19th and early 20th centuries. This transition improved precision, efficiency, and sustainability.
The invention of wire rope cables in the mid-19th century significantly enhanced safety. The early 20th century also brought increased mobility with internal combustion engines, leading to mobile and tower cranes, which expanded their applications across industries. Post-WWII, widespread hydraulic systems further refined operations with accurate control.
The 1980s saw a major leap in computer integration, introducing advanced control and anti-collision systems, which transformed crane operation into a more precise and safer procedure.
Today's "smart cranes" use automation, telematics, and even AI, offering GPS tracking and real-time diagnostics for improved safety and effectiveness. Future developments will focus on AI, machine learning, and eco-friendly hybrid/electric models to reduce carbon emissions and promote sustainability.
Despite these advancements, the core function of overhead lifting—moving materials vertically and horizontally—remains constant. This enduring principle, combined with continuous innovation, highlights that while the basic need for efficient and safe lifting is timeless, the solutions constantly advance.
The industry's growth also led to standardization and safety advocacy, with organizations like CMAA and HMI forming to promote uniform quality and safe operations and marking overhead cranes as foundational infrastructure.
In simple terms, an overhead crane (often called a bridge crane or EOT – electric overhead traveling – crane) is a machine that enables you to lift and move heavy materials horizontally within a defined area, usually inside a building. Formally, U.S.OSHA regulations define an overhead crane as "a crane with a movable bridge carrying a movable or fixed hoisting mechanism and traveling on an overhead fixed runway structure."
In practice, an overhead crane consists of two elevated parallel runways (rails or tracks) with a bridge beam spanning between them. The bridge can travel along the runways, and a hoist, which is the lifting device, travels back and forth across the bridge. Together, the hoist and bridge allow movement in three axes – up and down, side to side, and forward/back along the building – covering a rectangular working area.
The functionality of an overhead crane relies on the harmonious operation of its interconnected parts:
Bridge: This is the main structural component of the crane, typically spanning the length of the workplace. It comprises one or more girders, end trucks, and a drive mechanism. The bridge carries the trolley(s) and travels parallel to the crane runway, forming the primary horizontal support structure.
Hoist: The hoist is the critical lifting unit that raises and lowers the load. It operates using a drum or lift wheel, around which a chain or wire rope wraps. An electric motor with integrated gearboxes typically powers hoists.9 It is often considered the most important component as it directly performs the vertical lifting action.
Trolley: This is the platform or mechanism that carries the hoist along the length of the bridge. Its primary role is to facilitate the horizontal movement of the load across the work area, allowing for precise positioning within the crane's operational footprint.
Runway Rails/Tracks: These fixed rails or beams support the crane's end trucks and define the path for the crane's horizontal travel. They are typically mounted on the building's ceiling or structural framework, forming the foundational track for the crane.
Runway Beams: These structural beams that support the runway rails, forming the foundation upon which the entire crane system operates.9
End Trucks: Located at either end of the bridge, wheeled units allow the bridge to traverse along the runway rails, ensuring smooth and controlled movement across the entire workspace.
Control System: This system enables the operator to direct the precise movements of the bridge, hoist, and trolley. Controls can take various forms, including hard-wired pendant controls (with push buttons), wireless remote controls, or, in larger industrial settings, a stationary operator station or cabin. The sophistication of these control systems, including features like variable speed hoists, anti-sway, tandem control, and load turning, allows for precise, delicate, and coordinated material handling, extending the crane's value beyond simple lifting.
Motors and Gearboxes: Electric motors provide the driving force for the movement of the bridge, hoist, and trolley. Gearboxes are integrated to transmit power from the motors to the moving parts, adjusting speeds and torque to meet specific operational requirements.
Safety Features: Modern overhead cranes incorporate safety features to prevent accidents and ensure secure operation. These include overload protection devices (to prevent lifting loads exceeding rated capacity), limit switches (to stop crane movement beyond stipulated operational limits), and emergency stop buttons (for the instant halting of all crane operations in critical situations).
Bumpers (Buffer): These are energy-absorbing devices designed to reduce impact when a moving crane or trolley reaches the end of its permitted travel or when two moving cranes or trolleys come into contact. They can be attached to the bridge, trolley, or runway stop.
Electrification: This refers to the various components within the crane structure responsible for supplying and applying electrical power to the trolley and hoist mechanisms, enabling their operation.13 Common types include conductor bars, festoon systems, and cable reels.
An overhead crane provides multidirectional mobility for heavy loads. Unlike other lifting devices with limited movement, an operator can raise, move, and position loads anywhere within the crane's rectangular travel path.
These fixed installations are typically found indoors in manufacturing, warehousing, and industrial settings. Unlike mobile or construction cranes, overhead cranes run on a fixed runway system, making them ideal for environments like factories or steel mills where efficiency and minimal downtime are critical.
They transport goods overhead, saving floor space and avoiding aisleway obstructions. In short, an overhead crane is an industrial system that lifts and moves loads overhead across a large work area.
Integrating an overhead crane system is a pivotal strategic investment that significantly enhances your company's profitability and operational resilience. These systems are powerful assets that directly impact your bottom line and future growth, offering a distinct competitive edge over alternative material handling methods like forklifts.
Overhead cranes are custom-engineered solutions for optimal performance. Unlike a "one-size-fits-all" forklift, cranes are built to precisely match your unique operational needs, facility dimensions, and specific processes. This means optimized lifting capacity, handling hundreds of tons, and precise adaptation to challenging environments like intense heat or corrosion.
Their modular design allows for cost-effective adjustments, future expansions, and easy upgrades, safeguarding your initial capital investment and ensuring long-term relevance.
They provide unparalleled efficiency and productivity. Overhead cranes dramatically boost productivity by mechanizing heavy lifting and material movement, significantly reducing manual effort and handling time.
By operating overhead, they eliminate floor congestion and obstacles, allowing for direct, point-to-point load travel and dramatically reducing bottlenecks. This streamlines material flow, integrates seamlessly with other systems, and frees your workforce to focus on higher-value activities.
They can handle loads far heavier and more awkward than forklifts can, providing unmatched capabilities that prevent the limitations of ground-based vehicles.
Superior safety and robust risk mitigation are inherent benefits. Overhead cranes offer a fundamentally safer method for moving heavy loads, significantly reducing the risk of accidents and injuries compared to manual methods or even forklifts.
They feature essential safety systems like emergency stops, load limit switches, anti-collision technology, and remote operation, removing personnel from immediate danger.
By suspending loads overhead, they eliminate floor-level traffic hazards, pinch points, and the risk of loads tipping or falling, thereby reducing both product damage and workplace incidents.
Expect strategic cost savings and optimized space utilization. Beyond operational efficiency, cranes deliver substantial cost savings by reducing labor dependency and lowering operating expenses through energy-efficient drives. Proactive and predictive maintenance features prevent costly breakdowns, extending equipment lifespan.
Overhead cranes maximize your vertical space, significantly increasing storage capacity within your existing footprint and often eliminating the need for expensive facility expansions. They free up valuable floor space that would otherwise be consumed by wide aisles and maneuvering areas typically required by forklifts.
Finally, an overhead crane offers exceptional long-term asset value and precision. While a significant initial investment, overhead cranes are built for remarkable longevity, often decades—much longer than forklifts.
This durability, coupled with continuous productivity gains and reduced safety incidents, translates into a robust long-term return on investment.
Furthermore, modern cranes offer unmatched precision control, with features like variable speed hoists, ensuring delicate or high-value items are placed with extreme accuracy, minimizing product damage that can occur with less stable lifting methods.
Increased Productivity: Overhead cranes quickly and efficiently move heavy loads, reducing manual effort and handling time. They streamline material handling, accelerate movement, and minimize downtime by providing precise placement and direct point-to-point lifting, which allows employees to focus on higher-value tasks.
Optimized Workflow: Cranes route heavy lifts overhead, minimizing travel distance, reducing bottlenecks, and improving throughput. They integrate seamlessly with other systems like conveyors, eliminating intermediate transfers and cutting workstation cycle times.
Enhanced Safety Features: Cranes are equipped with essential safety features such as emergency stops, load limit switches, automatic shut-offs, and LED safety lights.
Reduced Risk of Accidents: They eliminate the need for hazardous manual carrying and offer remote control operation, removing operators from immediate danger.
Advanced Safety Systems: Anti-collision systems, load moment indicators, and overload protection actively prevent lifting beyond capacity. Crane interlocks prevent operation when safety gates are open, and routing lifts overhead eliminates floor obstacles and pinch points, significantly reducing workplace injuries.
Safety as an Efficiency Enabler: Enhanced safety leads to fewer accidents, less downtime, and more consistent, reliable operations, demonstrating that safety is integral to productivity.
"Overhead crane" is a broad term that encompasses several specific designs. The right type of crane for a given application depends on factors like the weight of the load, the coverage area needed, and the facility's structure.
When most people picture an overhead crane, they think of a bridge crane. A bridge crane consists of a bridge beam (or beams) that spans between two runways and travels along those runways to position loads.
The runways are typically fixed to the building's columns or ceiling structure (or freestanding support columns), forming two parallel tracks. The bridge carries the hoist and trolley, allowing them to move across the width of the building, while the runways allow movement down the length of the building.
Bridge cranes are extremely common in industrial environments. Among overhead crane types, they generally offer the highest lifting capacities (They are engineered to lift hundreds of tons if needed, but here at HOJ Innovations, we limit them to a maximum capacity of 100 tons.)

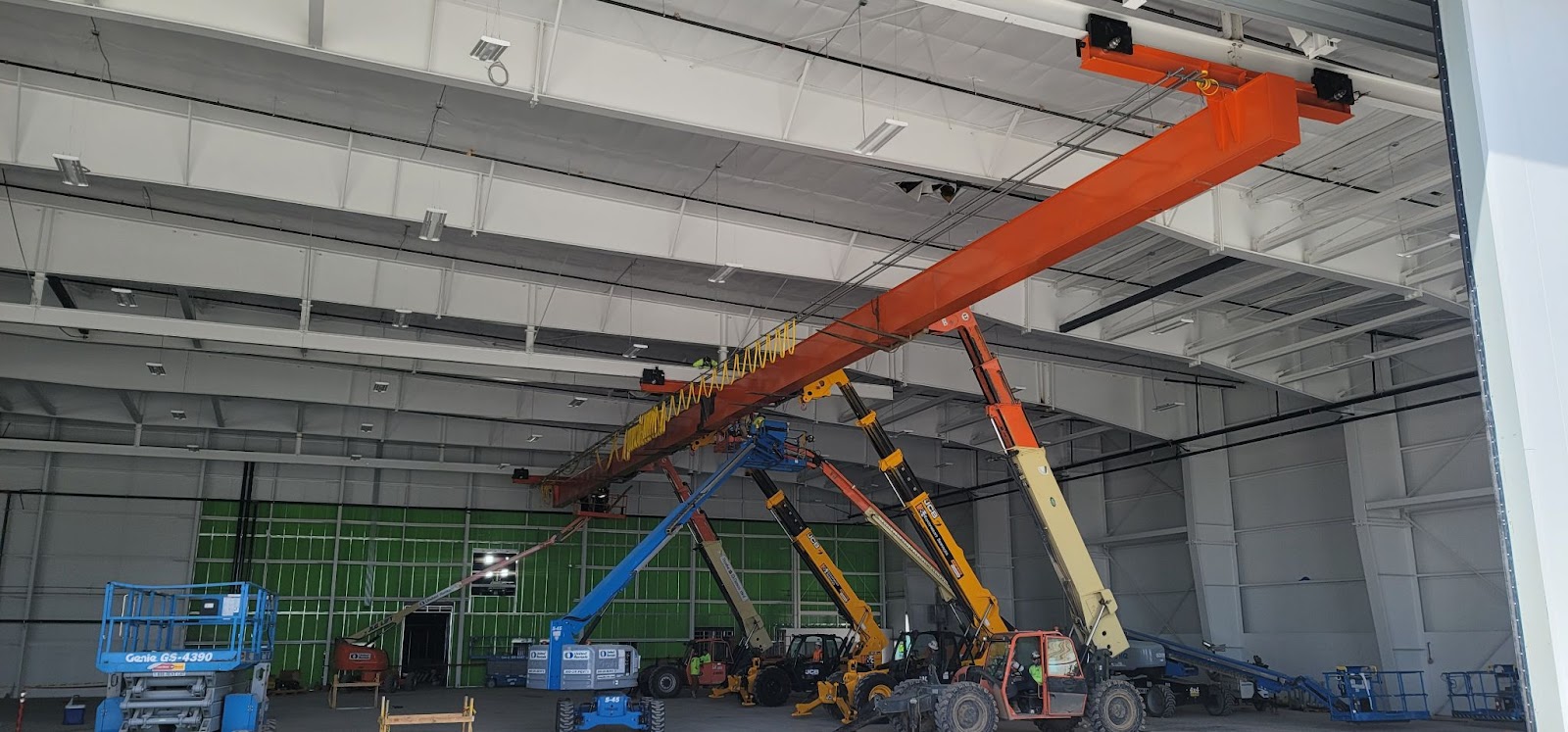

Single-girder bridge cranes use one beam to support the trolley and hoist—running on its bottom flange—making them compact and lighter. They are ideal for light-to-medium loads (15 tons or less) and shorter spans. Their design suits facilities with limited height or floor space offers a better hook approach and easily integrates with existing building supports.

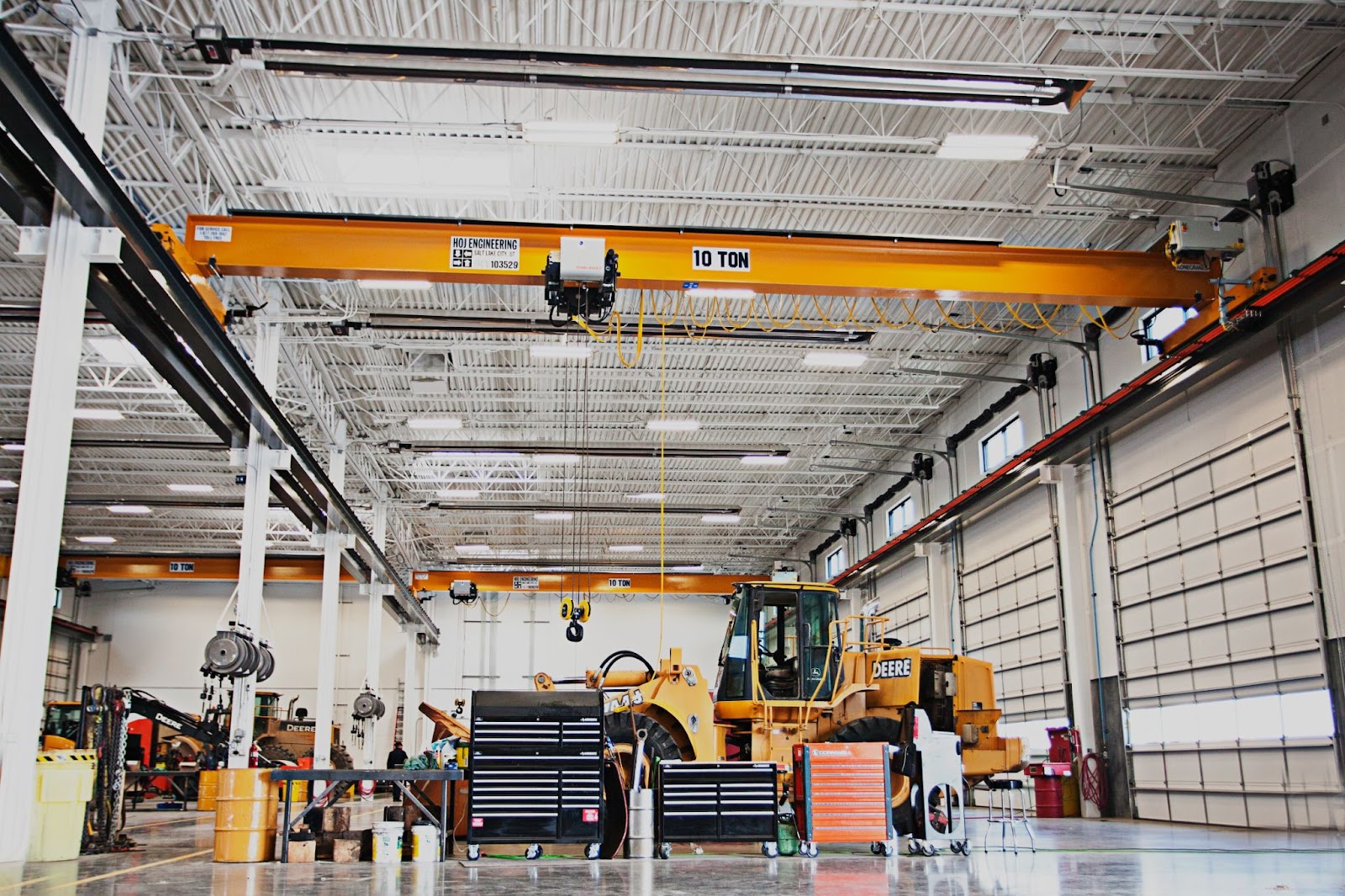

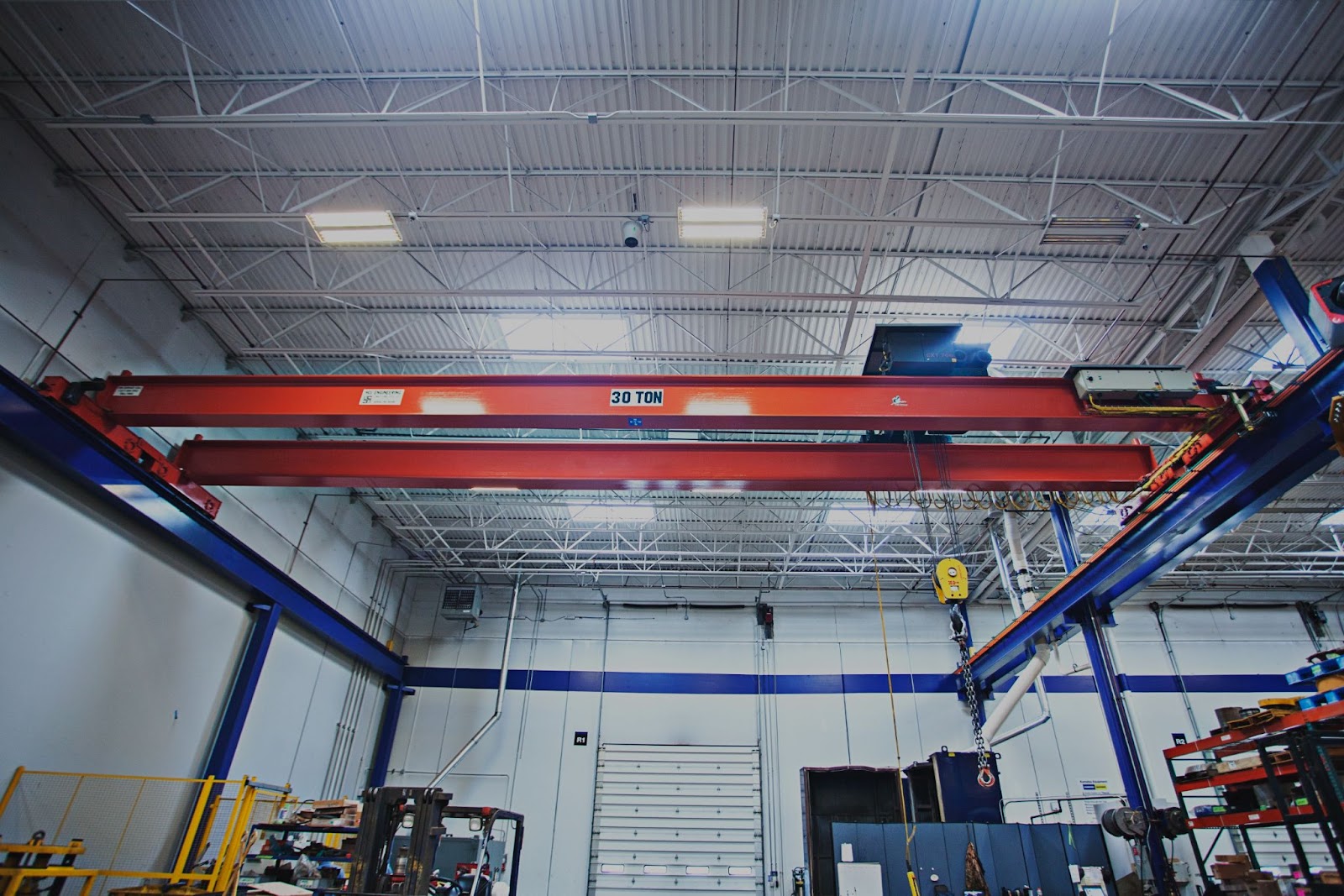

Double Girder bridge cranes use two beams atop runway end trucks, providing extra strength for heavier loads—typically over 15 tons and up to 1 ton—across longer spans. By placing the hoist between the girders, they gain 18–36 inches of additional hook height, maximizing lift space.
Common in heavy-duty settings like steel mills and shipyards, double girder cranes also support add-ons such as maintenance platforms, cabs, and lighting. For example, TC/American's underhung double girder models share loads across two parallel track beams, allowing for shallower beam designs than equivalent single girder cranes.
Underhung (or under-running) cranes roll along runway beams via wheels on the bottom flange, making them ideal spaces supporting low-headroom lifts.
Underhung cranes are supported by existing ceiling or roof structures and free up floor space by eliminating columns. Typically built as a single girder for lighter loads (up to 10–15 tons), they can also be designed in twin girder configurations for higher capacities.
Monorail cranes run along a single overhead I-beam, making straight-line moves ideal for production and assembly lines—their space-saving design mounts to overhead structures, freeing floor space.
Monorails transport materials smoothly along fixed paths—straight, curved, or sloped—and deliver loads to set stations, enabling quick exchanges at each workstation without disrupting workflow. Multiple trolleys can simultaneously move loads on a single or circular track.
In the simplest Terms, "A Gantry Crane is a pre-engineered floor-supported crane that rolls." - Nate Stoute - Crane Engineer Hoj Innovations.
Overhead gantry cranes have a bridge supported on legs that run on ground rails, making them freestanding—ideal for outdoor sites like shipyards and railyards without overhead support.
They're also useful indoors, such as for occasional lifts in an auto body shop. These cranes handle light to heavy loads and can be customized by girder design, size, hoist/trolley type, power source, and mobility.
Portable gantry cranes are lightweight, wheeled lifting systems with capacities from 0.5 to 5 tons. They are ideal for temporary use in workshops, garages, and small warehouses. Their modular design allows quick assembly, easy relocation, and storage, making them a cost-effective alternative for infrequent tasks like rigging, installation, repair, and loading.

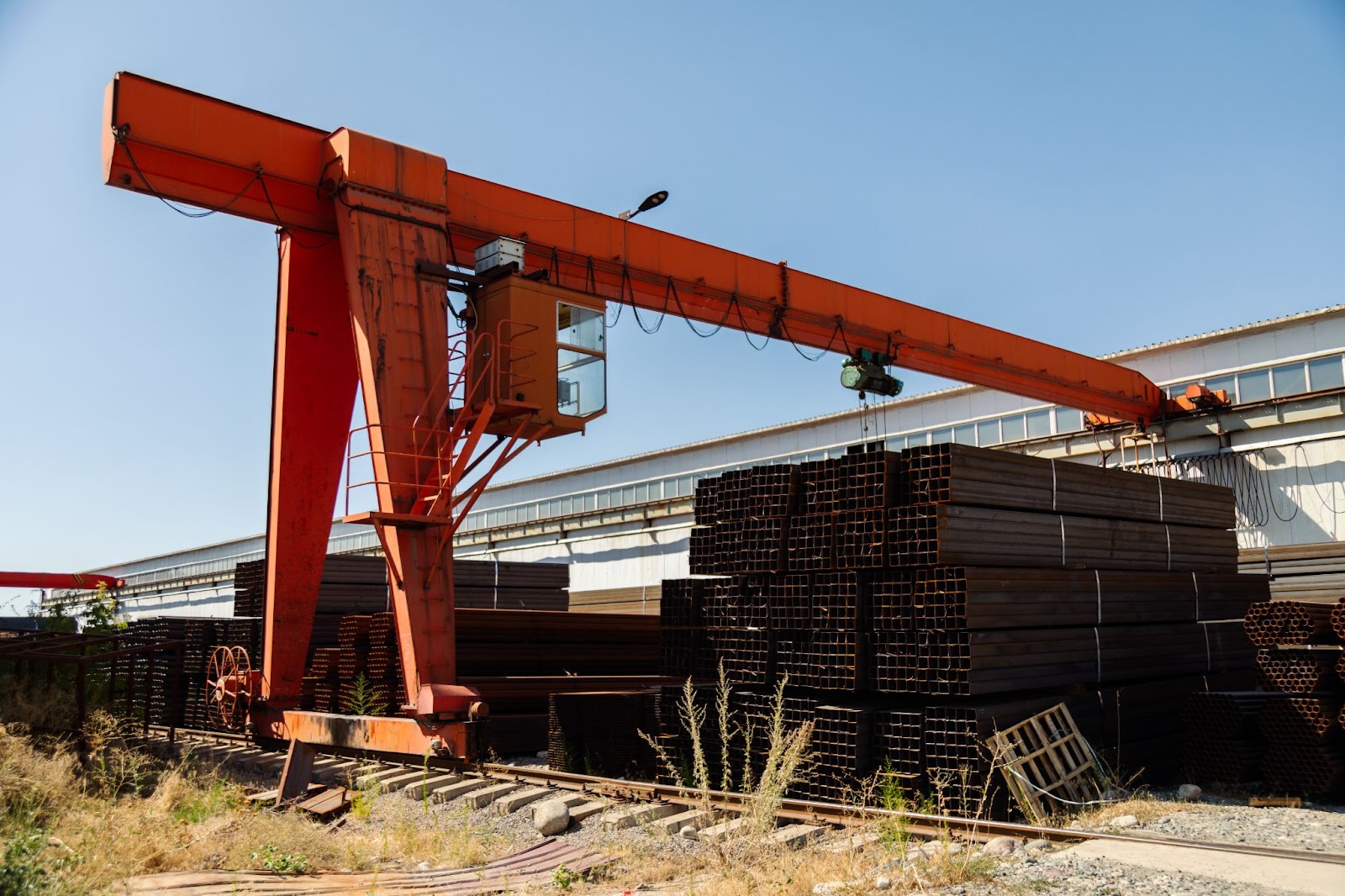

Heavy-duty gantry cranes—available as full or semi-gantry—serve heavy fabrication and outdoor yards (railroads, shipping, steel, scrap). Full gantry cranes have a cross beam and two legs on tracks with a motorized trolley hoist, lifting 5 to several hundred tons of items like steel beams, containers, or concrete sections.
Semi-gantry cranes use one leg and a wall-mounted runway, blending bridge and gantry features to save floor space and boost workflow; they can also run alongside existing overhead cranes. These cranes are common in shipyards for moving massive loads and in construction for handling concrete blocks, steel girders, and heavy lumber.

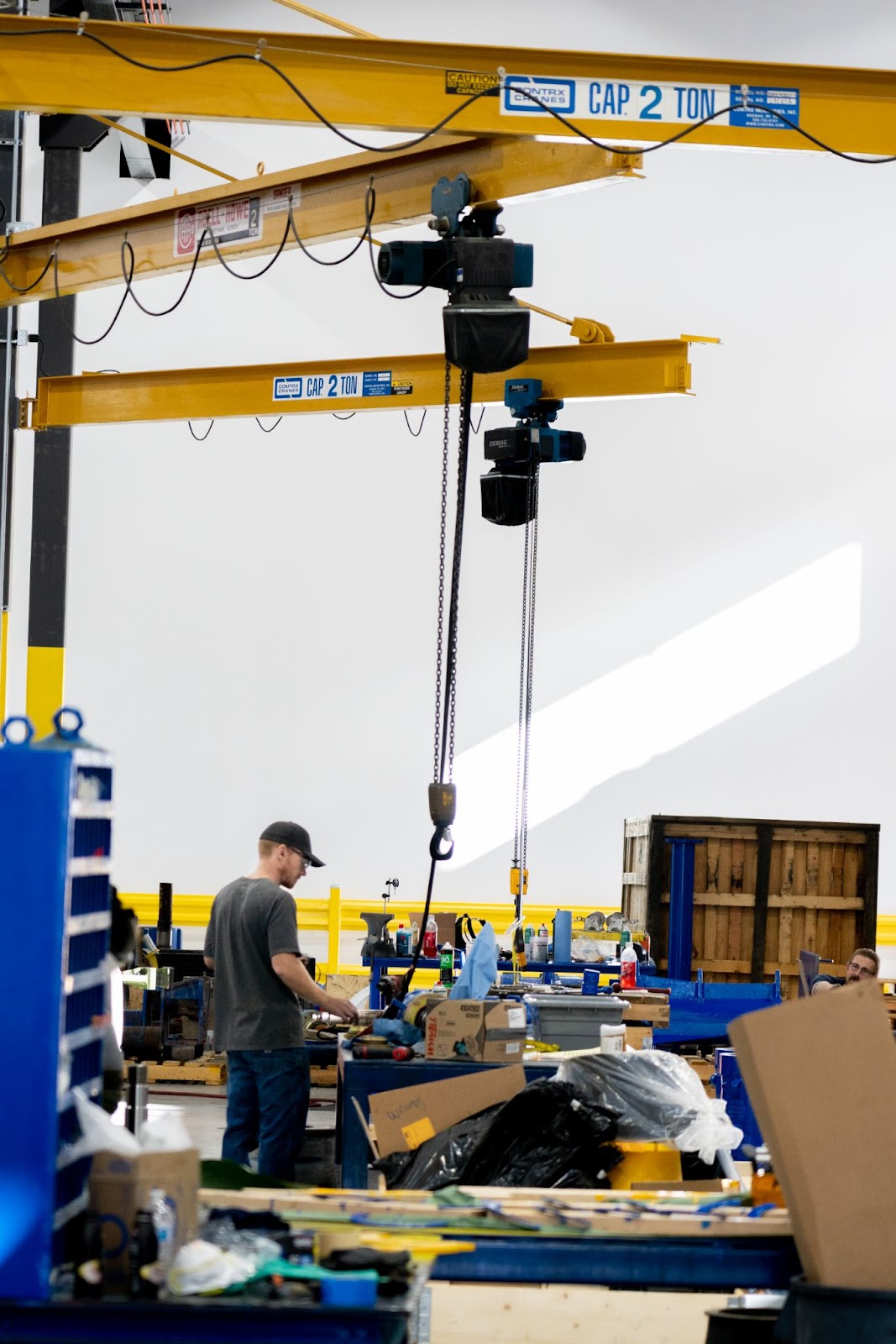

Workstation cranes (or Work-Area Cranes) handle localized lifting tasks in manufacturing, assembly, and material handling. Designed for lighter, repetitive loads, they improve efficiency by speeding up handling, reducing manual lifting risks, and enhancing ergonomics.
Available in freestanding or overhead configurations, workstation cranes require minimal structural changes and offer precise positioning. Common in manufacturing, warehousing, aerospace, automotive, food processing, and pharmaceuticals, they streamline workflows and protect workers from strain.

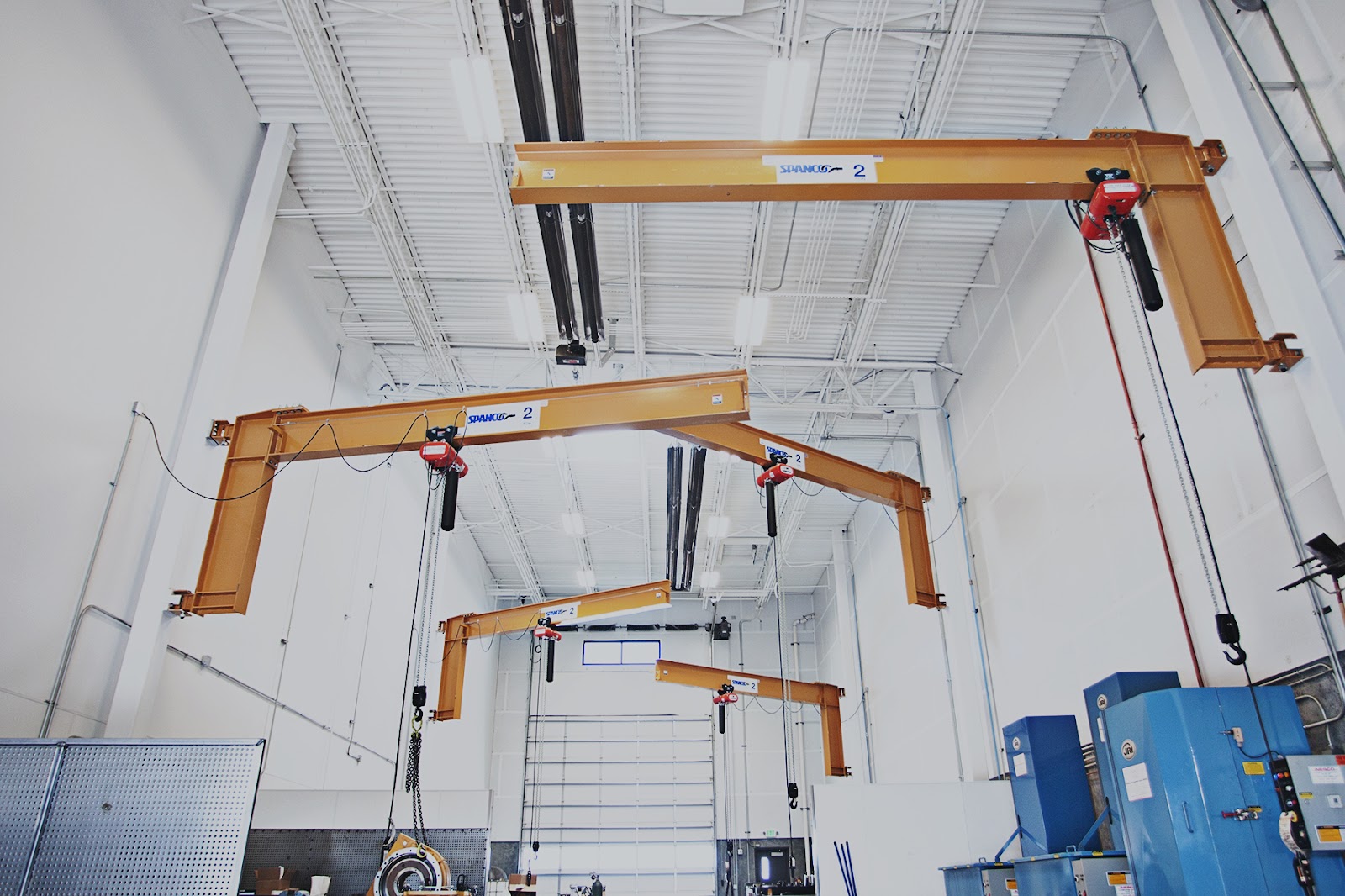

Jib cranes lift, move, and position loads within a workspace. Their rotating arm is mounted to a wall, pillar, or floor column. Ideal where overhead support is limited, jib cranes offer precise handling in manufacturing, warehouses, automotive shops, and construction sites.
Though less mobile than bridge cranes, jib cranes are cost-effective, complement other lifting systems, and save floor space.
Wall-mounted jib cranes attach to a structural wall or reinforced column, offering up to 180° rotation without using floor space.
They maximize workspace, require minimal installation and maintenance, and excel at frequent, repetitive lifts within a limited range. They are ideal for assembly lines, loading bays, and workshops handling lighter loads (under 1 ton).
Floor-mounted jib cranes (or mast/pillar-mounted) bolt to the floor or concrete foundation, offering maximum stability and 360° rotation for heavier lifts. Their robust design suits warehouses, fabrication areas, maintenance shops, and outdoor spaces without wall support.
The hook coverage area defines the total floor space that an overhead crane's hook can reach within its operating bay. It consists of two primary dimensions: the span (the width between runway rails) and the runway length (the distance between the end stops along the building). Together, these determine the hook's horizontal travel envelope.
Span Coverage: The crane's trolley moves across the bridge girder, allowing the hook to traverse the entire bay width. To ensure full coverage, the trolley must be capable of traveling from one end-stop to the other, minus any safety clearances required to prevent collisions with columns or building restraints. In practice, the hook can access nearly 100% of the bay width, allowing operators to place or retrieve loads anywhere beneath the crane path.
Runway (Length) Coverage: Along the runway, the bridge girder travels the full length of the building's runway beams. The hook can reach any point along this length, leaving small approach distances at each end to avoid impact with stops or structures. This full longitudinal coverage is critical for loading or unloading materials from racks, conveyors, or workstations throughout the facility.
Together, span and runway coverage create a rectangular work envelope on the floor: the hook can be positioned at any intersection of these two travel axes. Understanding this coverage area for warehouse managers and operators ensures that material layouts, racking systems, and production lines fall within the crane's reach—maximizing productivity and minimizing blind spots.
Optimizing overhead crane systems' performance, safety, and longevity is vital for industrial operations. HOJ Innovations provides comprehensive crane services in Utah and Idaho, helping businesses maximize the reliability and lifespan of their lifting equipment.
Maintaining your crane system effectively requires a multi-faceted approach. This includes proactive care, timely fixes, knowing when to upgrade, and using the right components. Below, we'll delve into these crucial aspects: maintenance, repairs, replacement cranes, and parts.
Regular maintenance is crucial for crane durability and safety. Proactive upkeep prevents minor issues from escalating into major problems, extending machinery life and enhancing workplace safety and efficiency. A robust preventive maintenance program increases safety and reliability and reduces unplanned downtime and overall costs.
OSHA mandates preventive maintenance based on manufacturer recommendations. This involves frequent checks of electrical systems (wires, connections, controls) and mechanical parts (gears, ropes, brakes for wear, lubrication). Daily operator inspections of hooks, wire ropes, limit switches, and brakes are also essential.
Even with diligent maintenance, cranes require repairs. Common issues include damaged wire rope, crane skew, end truck wheel wear, and electrical problems (e.g., contact interruptions, worn brushes, and blown fuses). Bent or damaged hooks also compromise integrity.
Indicators for repair include loud scraping sounds, broken wheel flanges, abnormal wear, increased power demand, or wheel climbing rails. Unresponsive controls or frequently blowing fuses signal electrical issues. Prompt repair prevents further damage, costly downtime, and safety hazards.
A crane must be replaced when it no longer meets operational demands, experiences frequent failures, or poses safety risks due to outdated technology. Key indicators include changes in lifting capacity or duty cycle, excessive wear and maintenance, scarcity of spare parts, and lack of modern safety features.
Upgrading or modernizing existing cranes can extend their useful life, improve safety and efficiency, and often cost less than purchasing entirely new equipment.
Because cranes work under heavy loads, high-quality OEM parts are crucial for fit, warranty, and durability. They last longer, lower long-term costs, and include items like hooks, wheels, bearings, controls, electrical components, brakes, and motors. Regular inspection and timely replacement keep crane operations safe and efficient.
The hoist is the critical component of an overhead crane and is directly responsible for lifting and lowering loads. By enabling vertical movement, hoists allow materials to be transported overhead without obstructing floor-level activities. This capability is essential for handling heavy items and reducing the ergonomic risks associated with repetitive manual lifting.
Hoists are classified by their lifting medium—wire rope or chain—and their power source—manual, electric, or air. Their lifting capacity depends on construction, and they are operated manually, via a pendant control, or with a wireless remote. Because hoists are supplied separately from the crane structure, they can be easily swapped or customized with different below-the-hook attachments.

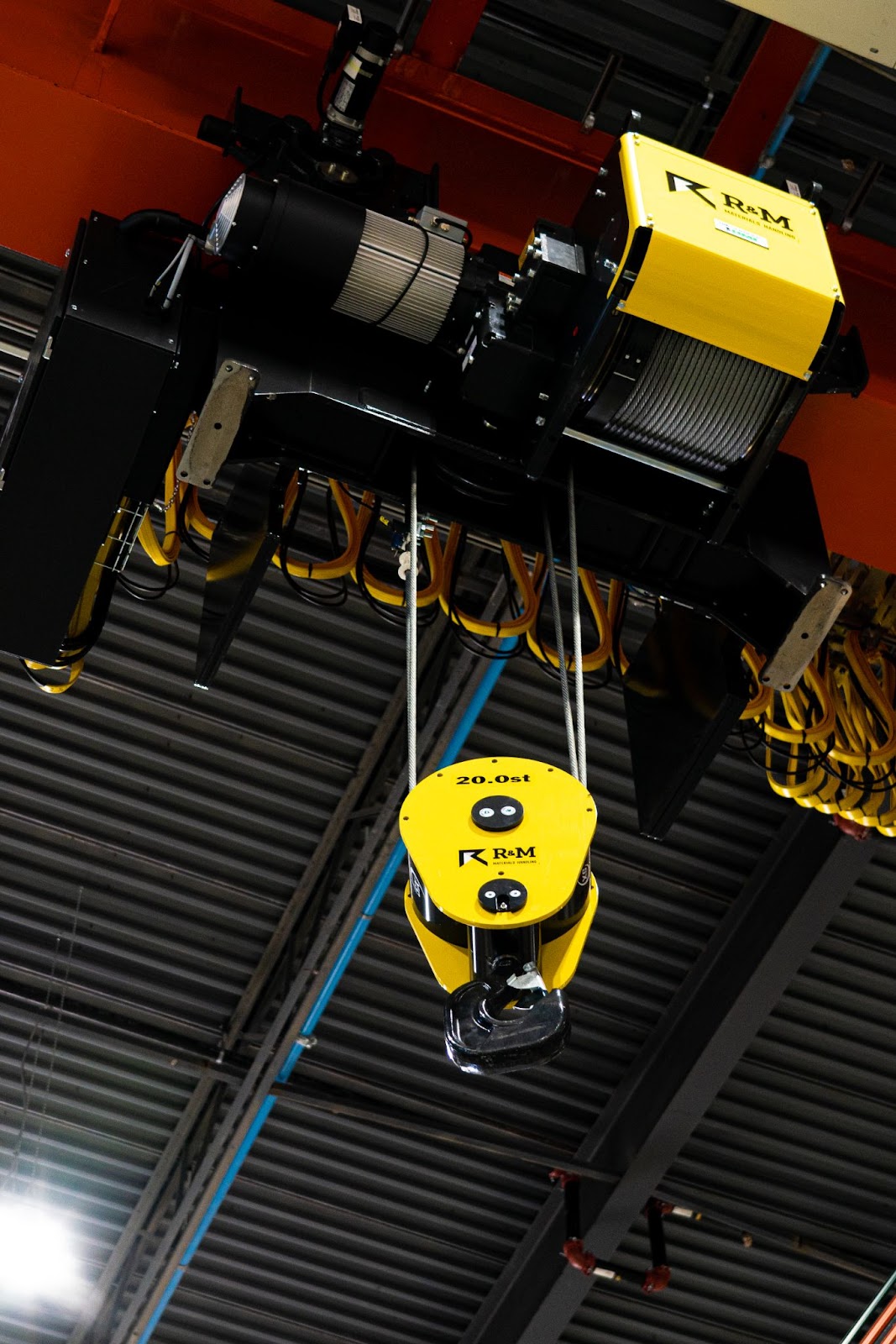

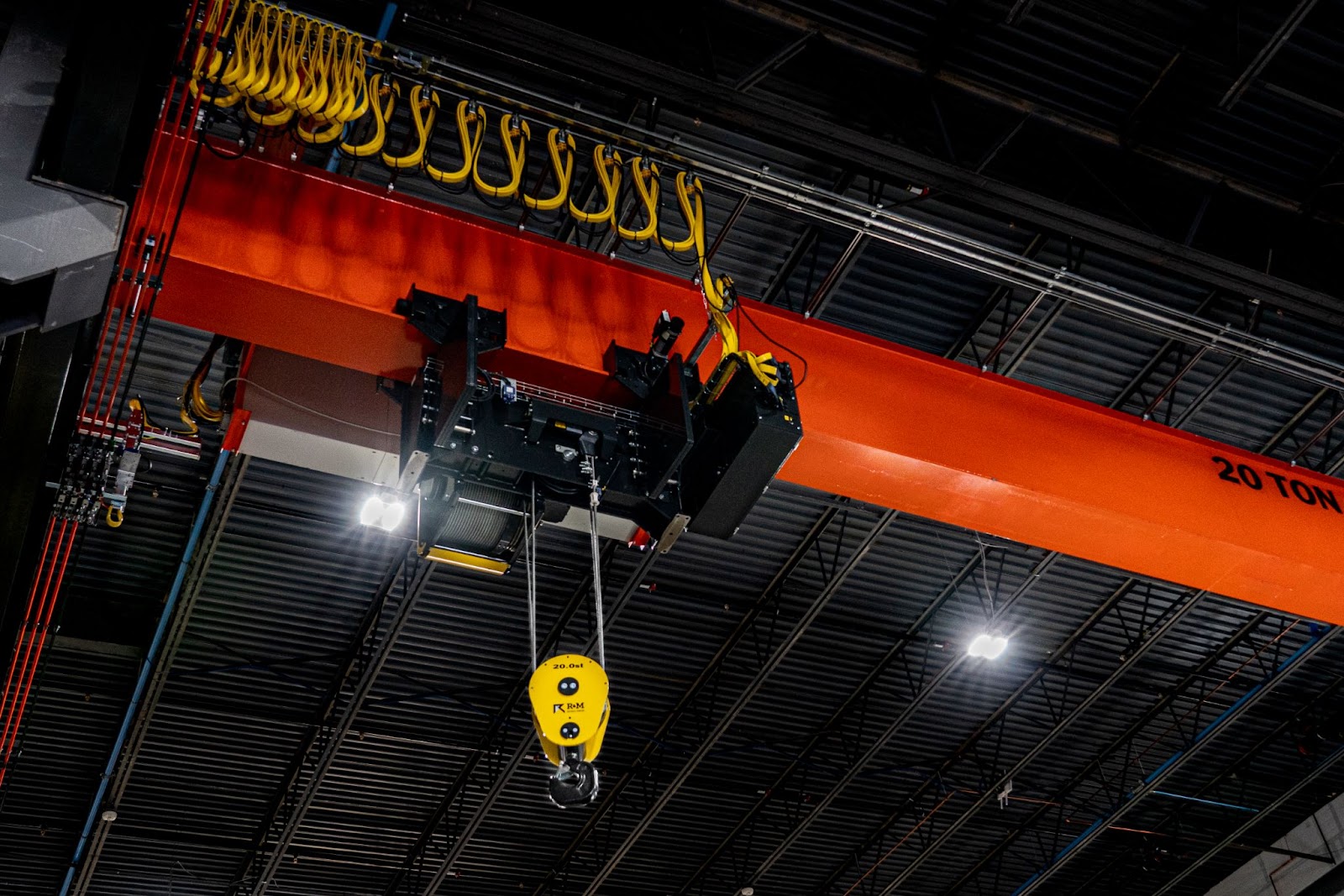

Electric wire rope hoists are favored in heavy-duty industries—manufacturing, mining, construction, and logistics—and are commonly used in various warehouses for their strength and reliability. They handle loads from a few hundred kilograms to 80–100 tons, offering fast, smooth operation via variable-speed electric motors and advanced controls.
Durable and comparatively quiet, they feature compact, energy-efficient designs with safety devices like overload limiters and limit switches to ensure long service life and compliance with industry requirements.

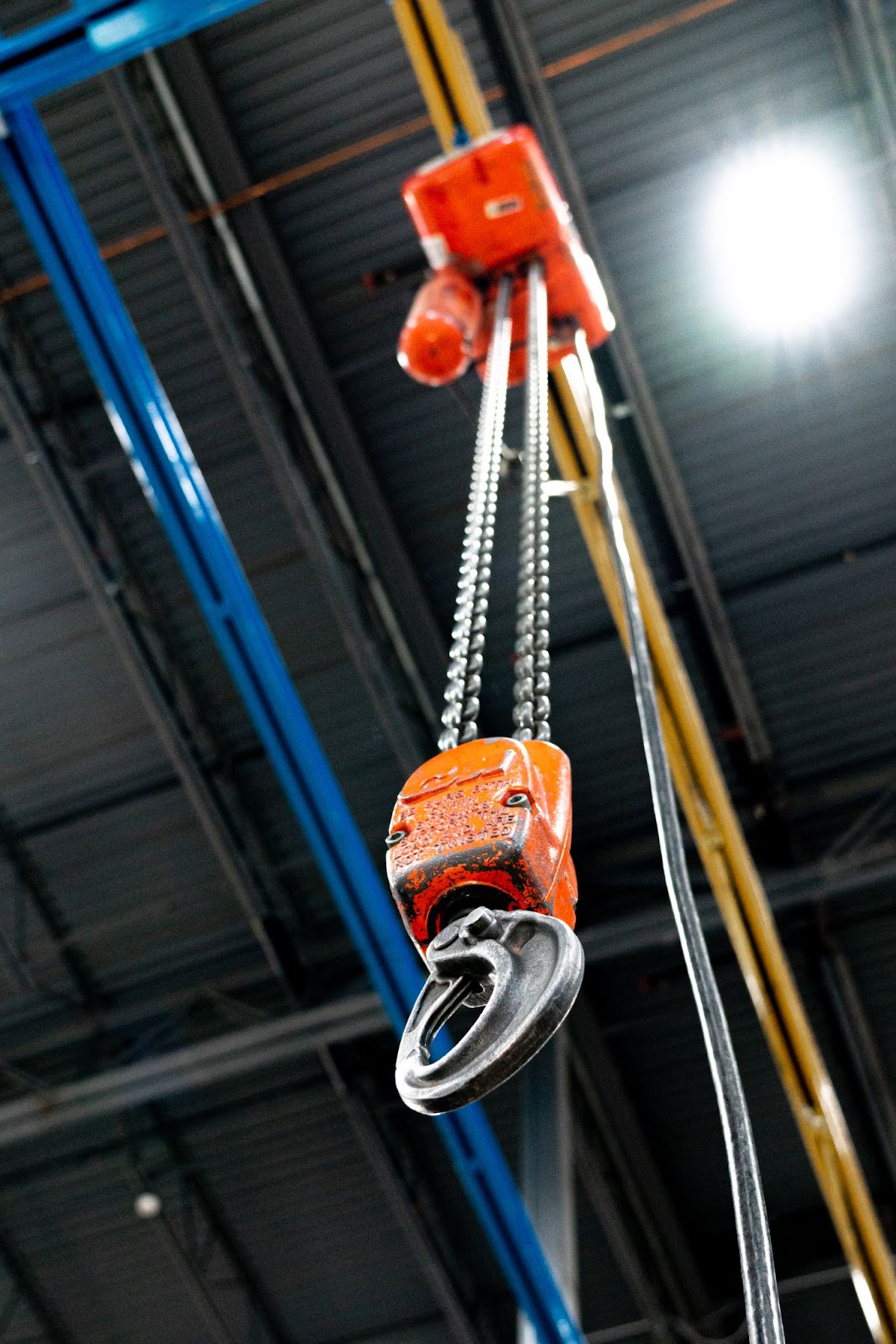

Electric chain hoists simplify lifting tasks in sectors such as oil and gas, engineering, and cement. They are also widely used across warehouses, automating loads from several hundred pounds up to 30 tons.
They enhance productivity and ergonomics with quiet, precise operation and optional overload protection. Cost-effective and easy to service, they conform to standard dimensions, perform reliably in harsh or high-temperature environments, and offer multiple speed options and variable control for accurate positioning.
Compliance with safety standards and regulations is not merely a legal obligation but a critical foundation for safe and efficient overhead crane operations.
Following safety standards reduces accidents and protects both personnel and equipment. This leads to smoother operations with less downtime, which boosts overall efficiency and productivity. Proper crane classification and use prevent overuse and excessive wear, extending equipment lifespan and maintaining optimal performance. A strong safety record also enhances reputation and fosters better client relationships.
Failing to follow safety regulations endangers workers and can result in hefty fines, legal liability, and reputational damage. Common hazards include dropped loads, collisions, electrical shocks, mechanical failures from poor maintenance, and operator errors. Even built-in safety factors can't prevent accidents if a crane is overloaded. Over the course of ten years, OSHA data showed that70% of the 270 injuries and fatalities could have been avoided if the regulations and safety guidelines had been followed.
Most crane regulations originate at the federal level (e.g., OSHA's 1910.179 for overhead bridge and gantry cranes), but many jurisdictions add state- or local-specific requirements.
In practice, you'll want to check with your local building department—where construction codes often dictate crane specifications, permits, and inspection rules—and with your state labor or OSHA office for operator certification, inspection schedules, and safety practices.
Always confirm whether you need city-issued crane permits, clearances for power-line work, or special certifications beyond OSHA's baseline.
HOJ fabricates and installs overhead bridge and gantry cranes according to CMAA Specifications 70 and 74, which are industry-standard guidelines set by the Crane Manufacturers Association of America (an affiliate of MHI). Following CMAA's design and installation criteria, our cranes meet rigorous performance, quality, and safety requirements.
Overhead cranes have long been essential for lifting heavy loads safely and efficiently, and modern systems continue to evolve with advanced technology and safety features.
Their modular designs improve space use, workflow, and adaptability to changing production needs, translating into cost savings, reduced labor dependency, and higher uptime. For warehouse managers, business owners, and construction buyers, choosing the right crane involves balancing performance, safety, and long-term value.
According to Nate Stout, Hoj's in-house Crane Engineer, People Choose Hoj Innovations because "We answer the phone, and we respond, and we are there. If there is ever a problem, we fix it. We'll be there the entire way, and we will not leave them hanging."
Working with an experienced partner like HOJ Innovations can help you navigate equipment selection, installation, maintenance, and compliance, ensuring your crane delivers reliable service throughout its lifespan.
